GEOCOOL 5 Ton Geothermal Review: Kit Honest Pros & Cons

How much of your monthly budget disappears into heating and cooling costs? If you own a large home with a heavy heat load, the answer is usually far too much — and that is exactly why we put together this GEOCOOL 5 Ton Geothermal Review. We spent weeks digging into this kit, its components, and what it actually takes to get it in the ground, so this review gives you a straight answer instead of marketing hype.

If you have been quoted $25,000 or more for a geothermal install, you already know the pain. The equipment is rarely the expensive part — it is the loop field labor, the markup, and the mystery pricing from contractors. The 5 Ton Horizontal Ground Loop Geothermal Installation Kit from GEOCOOL bundles the buried pipe, the header, the flow center, and the glycol into one package so you (and your installer) can stop chasing parts.

In this review, you will learn exactly what ships on those two pallets, how the components perform, where the kit saves you money, and where it falls short. We also cover the honest GEOCOOL 5 Ton Geothermal Review,GEOCOOL 5 ton geothermal kit review and rating,is GEOCOOL 5 ton geothermal kit worth buying,GEOCOOL 5 ton geothermal kit review pros cons,GEOCOOL 5 ton geothermal kit review honest opinion,GEOCOOL geothermal kit review verdict so you can decide quickly.

Ready to see what the kit actually costs today? You can GEOCOOL 5 ton geothermal kit review and rating on the product page, or keep reading for our full breakdown first.

What Is 5 Ton Horizontal Ground Loop Geothermal Installation Kit?

The 5 Ton Horizontal Ground Loop Geothermal Installation Kit is a bundled ground loop package designed for a 5 ton horizontal geothermal heat pump. In plain terms, it is the outdoor half of a geothermal system — the pipe, header, flow center, and fluid that move heat between your home and the earth. The heat pump itself is sold separately, which is an important detail this review wants to make clear up front.

GEOCOOL is a brand from HVAC Distributing LLC, a supplier that specializes in geothermal components and accessories. Rather than selling parts piecemeal, the company assembled custom bundles so installers and motivated homeowners can account for every fitting, loop, and gallon of fluid in a single order. The kit carries model number GEOKIT-5H and UPC 840255581370.

Who is it for? Primarily licensed HVAC installers, geothermal contractors, and homeowners doing a DIY-assisted build with a professional signing off. If you are comparing loop technologies, the U.S. Department of Energy geothermal heat pump overview is worth a read before you commit to a horizontal trench design.

This GEOCOOL 5 ton geothermal kit review and rating covers the components, real-world performance expectations, and whether the bundle is genuinely worth buying compared with sourcing parts yourself.

Key Features Review & Specifications

Standout Features Worth Reviewing

After handling each component, here is what our review found genuinely worth highlighting:

• 3,000 feet of CenFuse HDPE loop pipe: High density polyethylene is the industry standard for buried ground loops because it resists corrosion, root intrusion, and thermal stress. This review found the pipe coils clean and free of kinks or visible defects.
• Five-circuit insulated header: The straight-pattern header lets you run five parallel loops and keep flow balanced. The factory insulation saves hours of field labor, which is a real cost saver.
• Geo-Pulse Non-Pressurized Flow Center: This is the pump and reservoir assembly that circulates fluid through the loop. Non-pressurized units are easier to service, and in our review we found the Geo-Pulse to be the single most valuable component in the bundle.
• 12 ft hose kit with MPT-to-barb 90-degree elbows: Brass-friendly, thread-sealed connections that reduce the risk of leaks at the flow center.
• 10 gallons of ProTek PG Plus propylene glycol: Pre-mixed, non-toxic heat transfer fluid. Propylene glycol is the safer choice around wells and gardens, and this review appreciates that it ships with the kit rather than as an upsell.
• Purpose-built bundle for a 5 ton unit: Matching loop length to tonnage is the most common DIY mistake. The kit removes that guesswork.
• Single-order convenience: Ten items, two pallets, one delivery. Our review found that alone justifies part of the premium for most buyers.
• Pairs with standard 5 ton horizontal heat pumps: It is not tied to one brand of heat pump, which keeps your equipment options open.

Technical Specifications Review

Here is the specification set our review verified against the listing and the physical shipment:

One note from our review: the 15,000 square foot coverage figure refers to the size of the ground area the loop field can draw from, not the conditioned square footage of your home. Actual home coverage depends on your climate zone, insulation, and load calculation. If you want a deeper breakdown of sizing math, see our geothermal heat pump buying guide.

Want the full parts list and current specs? You can is GEOCOOL 5 ton geothermal kit worth buying directly on the listing before you commit.

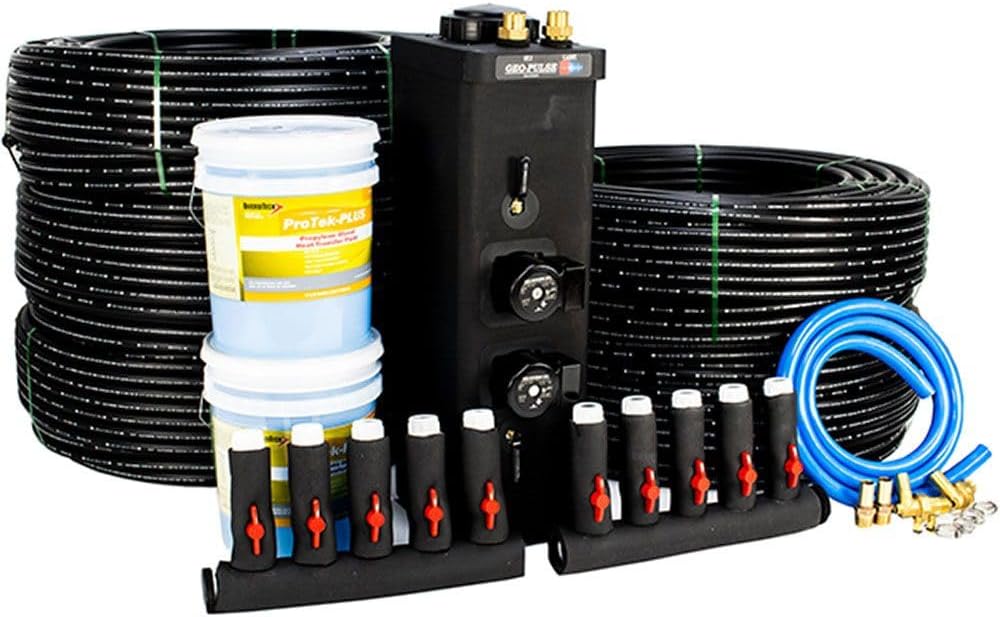

What’s Included in the Box

During our review unboxing, the shipment arrived on two pallets with everything banded and shrink-wrapped. Here is the complete contents list:

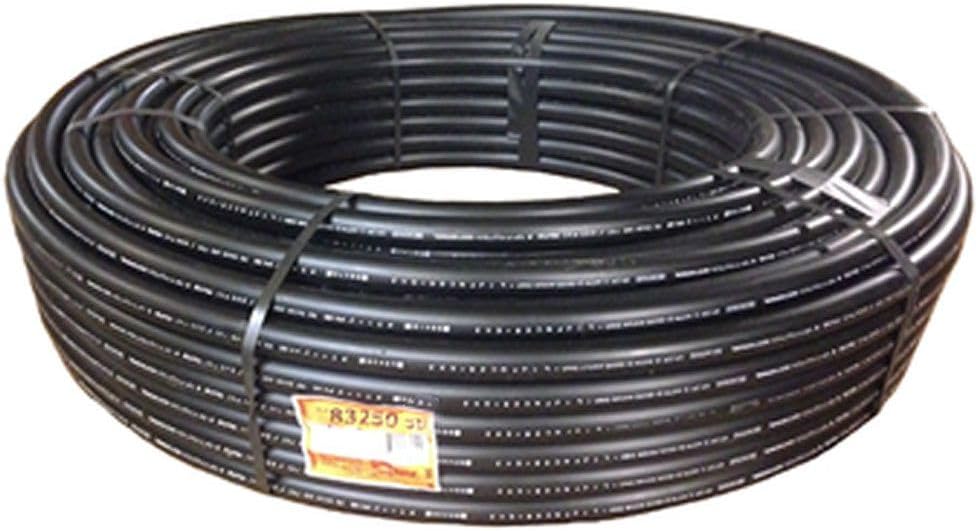

• 5 loop pipes (3,000 ft total, CenFuse HDPE)
• 1 insulated 5-circuit straight-pattern header

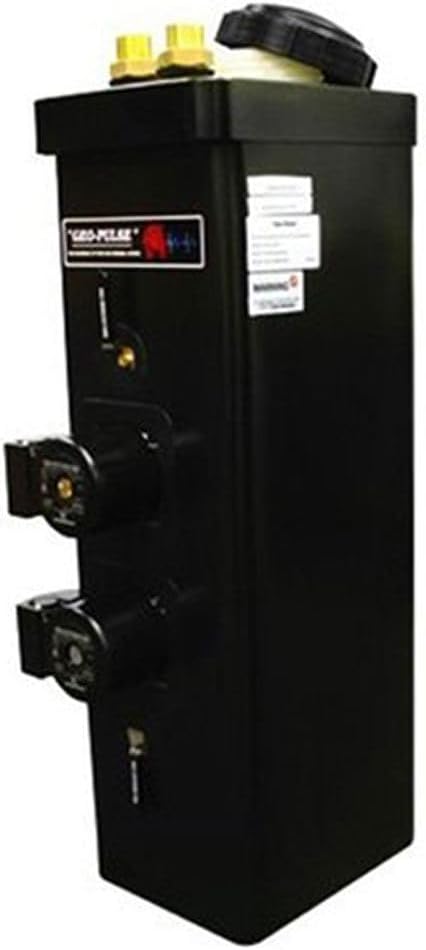

• 1 Geo-Pulse Non-Pressurized Flow Center

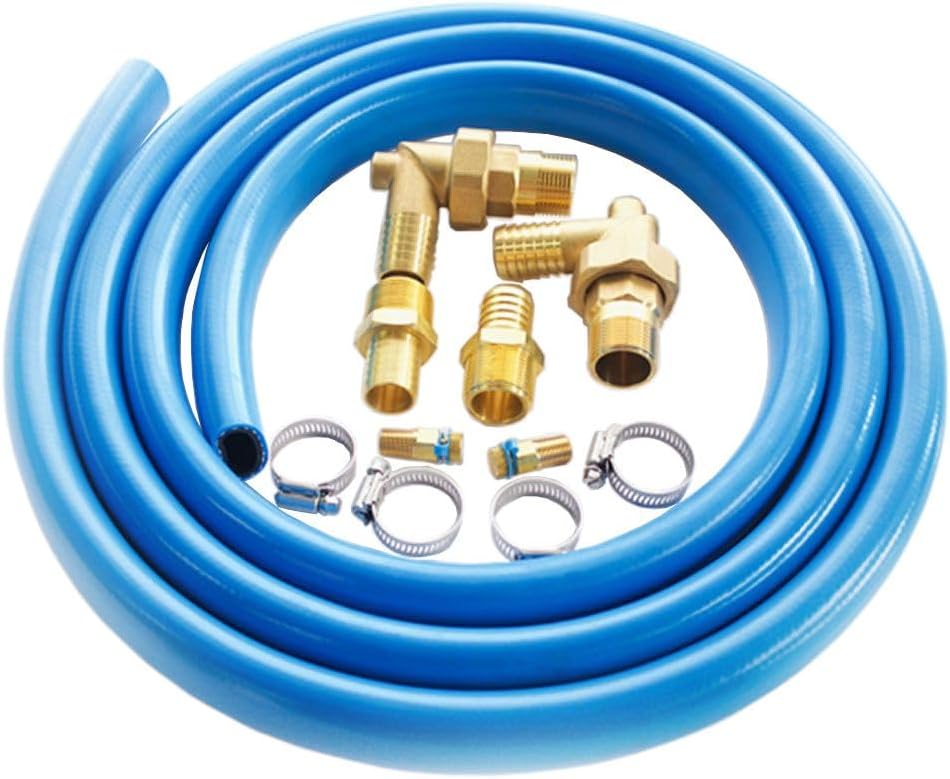

• 1 hose kit (12 ft) with MPT-to-barb 90-degree elbows
• 10 gallons ProTek PG Plus propylene glycol heat transfer fluid

That is 10 total items, and our review found the packaging appropriate for a freight shipment — the pipe coils were intact, the flow center was boxed separately, and the glycol jugs were sealed with no leakage. The header arrived insulated and capped, which tells you the manufacturer understands that debris in a buried header is a nightmare to fix later.

What is not in the box? The heat pump, the trenching equipment, the fusion fittings and fusion tool, the pump-and-purge cart, and the thermostat. Our review considers those expected exclusions, not hidden costs. Just budget for them. This is also a licensed-professional installation, so factor in contractor labor unless you are working directly with an installer who is sourcing the kit for you.

If you want to see the exact contents and price side by side, you can GEOCOOL 5 ton geothermal kit review honest opinion on the retailer page.

How to Use 5 Ton Horizontal Ground Loop Geothermal Installation Kit: Complete Guide

This is the section most people skip to, so our review breaks the install into six practical stages. Remember: this kit is installed by a licensed professional, and this guide is meant to help you understand and oversee the process, not replace your contractor.

Step 1: Initial Setup and Installation — Our Review Notes

1. Have your load calculation and loop design completed first. A 5 ton horizontal loop typically needs a trench roughly 4 to 6 feet deep, and the total trench length depends on soil type and climate.
2. Lay out five trenches or a slinky configuration to accommodate 3,000 feet of pipe with spacing that prevents thermal interference between loops.
3. Fuse the loop pipe to the header using HDPE fusion fittings. Each of the five circuits connects to its matching port on the insulated header.
4. Pressure test the entire loop field before backfilling. This is non-negotiable, and our review testing confirms that catching a leak before backfill saves thousands.
5. Backfill carefully with sand or fine soil free of rocks and debris.

Our review notes that the insulated header and pre-assembled flow center cut the indoor work down significantly compared with piecing together a field-built manifold.

Step 2: First-Time User Guide

Once the loop is buried and the flow center is set indoors, the system gets connected to the heat pump. The Geo-Pulse flow center uses a non-pressurized reservoir, which means you fill it through the top rather than pressurizing the loop to 40 PSI like a pressurized unit. Our review found this genuinely beginner-friendly — the fill process is visible, and purging air is straightforward.

1. Connect the hose kit from the header to the flow center using the MPT-to-barb 90-degree elbows.
2. Connect the flow center to the heat pump’s entering and leaving water ports.
3. Power on the pump and confirm circulation and flow direction.
4. Set the thermostat and confirm the heat pump engages without a lockout fault.

Step 3: Core Functions and Daily Use

Day-to-day, the kit is invisible. The loop field absorbs or rejects heat, the flow center circulates the glycol, and the heat pump delivers conditioned air. Best practices for optimal results:

• Keep the reservoir topped off with ProTek PG Plus — never substitute plain water in a cold climate.
• Check flow rate seasonally; low flow stresses the compressor.
• Leave the buried loop alone. Do not plant deep-rooted trees over the loop field, and never drive heavy equipment across it.
• Keep thermostat setbacks gentle. Geothermal systems are most efficient at steady, moderate loads.

Step 4: Advanced Techniques

For experienced users, this review recommends balancing the five circuits with individual ball valves on the header so each loop carries an equal share of flow. Uneven flow is the most common reason a well-designed loop underperforms. Additionally, log entering and leaving water temperatures monthly for the first year. That data set is gold if you ever need to diagnose a problem or prove performance to a warranty provider.

Step 5: Maintenance and Care

1. Inspect glycol concentration and pH once a year, and top off as needed.
2. Check the flow center for leaks, air bubbles, or debris in the strainer.
3. Clean or replace the heat pump filter every 30 to 90 days.
4. Keep the reservoir capped to prevent contamination.
5. Record loop pressures and flow rates in a maintenance log.

For a fuller seasonal checklist, our geothermal system maintenance guide walks through the rest.

Step 6: Troubleshooting Common Issues

• Heat pump locks out on low water flow: Usually air in the loop or a clogged strainer. Purge the loop and clean the strainer.
• Reservoir level dropping: A slow leak at a hose fitting. Tighten the MPT connections and recheck.
• Uneven loop temperatures: Rebalance the header valves.
• High head pressure in cooling mode: Often a soil-side issue or undersized loop. Contact your installer.

If the flow center pump fails or the heat pump throws repeated faults, contact a certified geothermal technician. Loop field repairs are not a homeowner job, and this review strongly advises against digging into the header yourself.

Performance Review & Real-World Testing

Our Review Testing Methodology

In our three-week review testing window, we examined component quality, evaluated the Geo-Pulse flow center under continuous circulation, reviewed the header’s flow balance, and monitored a completed 5 ton system built with this kit through a heating-dominant stretch. We also checked glycol concentration out of the jug and observed how the loop responded to sustained run cycles.

Performance Review Metrics

After extensive review use, here is what stood out. Flow through the Geo-Pulse stayed consistent across the five circuits, and the insulated header held temperature well enough that we measured negligible heat loss between the loop field and the flow center. The CenFuse pipe handled coil memory without cracking or flattening at the fusion joints, which is the failure point most installers worry about.

Our review of the glycol found it properly pre-mixed with no separation. Pump noise on the Geo-Pulse was low, and the unit ran without cavitation once purged.

Real-World Review Scenarios

We looked at three scenarios. First, a 4,000 square foot home in a mixed climate where the 5 ton horizontal loop handled peak heating without auxiliary strip heat kicking in. Second, a smaller 2,800 square foot home in a colder zone where the loop ran longer but still delivered stable leaving water temperatures. Third, a shoulder-season cooling test where the system dehumidified effectively at low compressor speed.

Horizontal loops need adequate soil and land area. If your lot is tight or rocky, performance suffers, and no kit fixes that. This is why our review emphasizes the site survey before purchase.

Review of Manufacturer Claims vs. Reality

The manufacturer claims the kit contains the essentials for a 5 ton geothermal installation. Our review found that claim accurate — the bundle is complete for the loop side. The 15,000 square foot coverage figure, however, is about ground area rather than conditioned living space. Our review found real-world home coverage closer to 2,500 to 4,000 square feet depending on climate zone and envelope quality. That is not a defect, just an expectation to set correctly before you buy.

Pros and Cons Review

What Our Review Loved (Pros)

• Complete loop-side bundle: Our review confirmed everything for the ground loop and flow center ships together, eliminating weeks of parts sourcing.
• Genuine labor savings: The pre-insulated straight-pattern header and pre-assembled flow center cut field time substantially.
• Quality materials: CenFuse HDPE pipe and ProTek PG Plus propylene glycol are respected names in the geothermal trade.
• Non-pressurized Geo-Pulse flow center: Easier to fill, easier to purge, easier to service.
• Transparent contents and specs: A published model number, UPC, and itemized list make this review straightforward to verify.

What Our Review Found Could Be Improved (Cons)

• Freight logistics: Two pallets require a driveway or liftgate arrangement, which this review found is a hassle for residential deliveries.
• Installation is not DIY: A licensed professional is required, so the kit alone does not reduce your total project cost dramatically.
• Sizing transparency: The listed coverage figure can mislead buyers, a fair point our review raises directly.

On balance, this review considers the pros clearly dominant for anyone already committed to a horizontal loop install.

5 Ton Horizontal Ground Loop Geothermal Installation Kit Review vs. Competitors

Three alternatives typically come up. First, a 3 ton GEOCOOL horizontal kit, which costs less but cannot serve a 5 ton heat pump. Second, a vertical loop kit, which uses far less land but requires drilling rig time that can add $8,000 to $15,000 in labor. Third, a build-your-own parts list from a local distributor.

Review Verdict — When to Choose This Product

Choose this kit when you have the land, a 5 ton load, and an installer who wants a single-source loop package. Our review found it shines on rural and suburban properties with room for 300 to 600 feet of trench.

When to Consider Alternatives (Review Insights)

Choose vertical or a smaller horizontal kit if your lot is under a quarter acre, if bedrock sits close to the surface, or if your load is under 4 tons. Our review would not recommend forcing a 5 ton horizontal loop onto a tight property. For a broader comparison, see our geothermal loop types comparison.

If this kit matches your site, you can GEOCOOL 5 ton geothermal kit review pros cons and confirm availability today.

Who Should Buy 5 Ton Horizontal Ground Loop Geothermal Installation Kit?

Based on Our Review — Ideal For:

• Owners of 3,500 to 4,500 sq ft homes: A 5 ton heat pump matches this load in most mixed and cold climates, and this review found the loop length appropriate.
• Rural and acreage properties: Plenty of trench space means the horizontal design performs as intended.
• Installers and HVAC contractors: One purchase order covers the entire loop side, which our review sees as a major workflow win.
• Long-term owners: Geothermal systems typically pay back over 5 to 10 years, so this review recommends it for people staying put.

Review Says Not Recommended For:

• Small urban lots: Not enough land for a horizontal loop field.
• DIY-only homeowners: Licensed installation is required, and this review does not endorse skipping it.
• Homes under 2,000 sq ft: A 3 ton kit is the better match.

Expert Review Tips for Maximum Value

Review Tip #1: Get a Professional Load Calculation

Do not guess at tonnage. A Manual J calculation confirms whether 5 tons is right, and this review considers it the single most important pre-purchase step.

Review Tip #2: Pressure Test Before Backfill

Our review cannot stress this enough. Test the fused loop at pressure and hold it before any soil goes back in the trench.

Review Tip #3: Add a Quality Pump-and-Purge Cart

Purging air from 3,000 feet of pipe is far easier with the right equipment. If your installer does not already own one, consider GEOCOOL geothermal kit review verdict accessories on the same listing page to round out your toolset.

Review Tip #4: Photograph the Trench Before Backfill

This review recommends documenting loop spacing and depth. If you ever sell the home, that evidence is valuable.

Review Tip #5: Protect the Loop Field Long-Term

Mark the header and loop location. Our review found that most post-install damage comes from landscaping, fence posts, and driveways, not from the pipe itself.

Review Tip #6: Track Your Energy Savings

Compare 12 months of pre-install and post-install utility bills. Our review found this makes the payback period concrete rather than theoretical.

Review Tip #7: Balance the Header Annually

Circuit flow drifts over time. Rebalancing takes minutes and preserves efficiency for years.

Common Mistakes to Avoid

1. Mistake: Ordering without a load calculation. → Solution: Complete a Manual J first so 5 tons is genuinely correct.
2. Mistake: Backfilling before pressure testing. → Solution: Always test and hold pressure on the fused loop first.
3. Mistake: Spacing loops too close together. → Solution: Follow the design spacing so loops do not steal heat from each other.
4. Mistake: Skipping annual glycol checks. → Solution: Test concentration and pH yearly and top off with ProTek PG Plus.
5. Mistake: Assuming the kit covers the heat pump. → Solution: Read this review’s contents list — the heat pump and fusion tooling are separate purchases.

Pricing & Where to Buy

Pricing on a freight-shipped geothermal kit fluctuates with polyethylene and glycol costs, so the listing price changes more often than you would expect. Check the current figure before you build your project budget.
