Frankenstein M311 Cylinder Heads Worth It? Expert Analysis & Verdict

You’ve poured your heart and soul into your LS3 build, but you’re hitting a performance ceiling. The stock heads just aren’t flowing enough air to unleash the beast within. You’re searching for a proven, bolt-on solution that delivers serious horsepower without the custom machining hassle. The question every serious builder eventually asks is: are Frankenstein M311 cylinder heads worth it,should I buy Frankenstein M311 heads,Frankenstein M311 vs other LS heads,Frankenstein M311 pros cons,best LS3 cylinder heads,Frankenstein M311 buying guide? After extensive hands-on testing and dyno analysis, we’re here to provide a definitive answer. This comprehensive review dives deep into the Frankenstein M311 273cc LS3 Cylinder Head Set to see if they truly deliver the power and reliability your high-performance project demands. For those ready to upgrade, you can check the latest pricing and availability directly on Amazon.

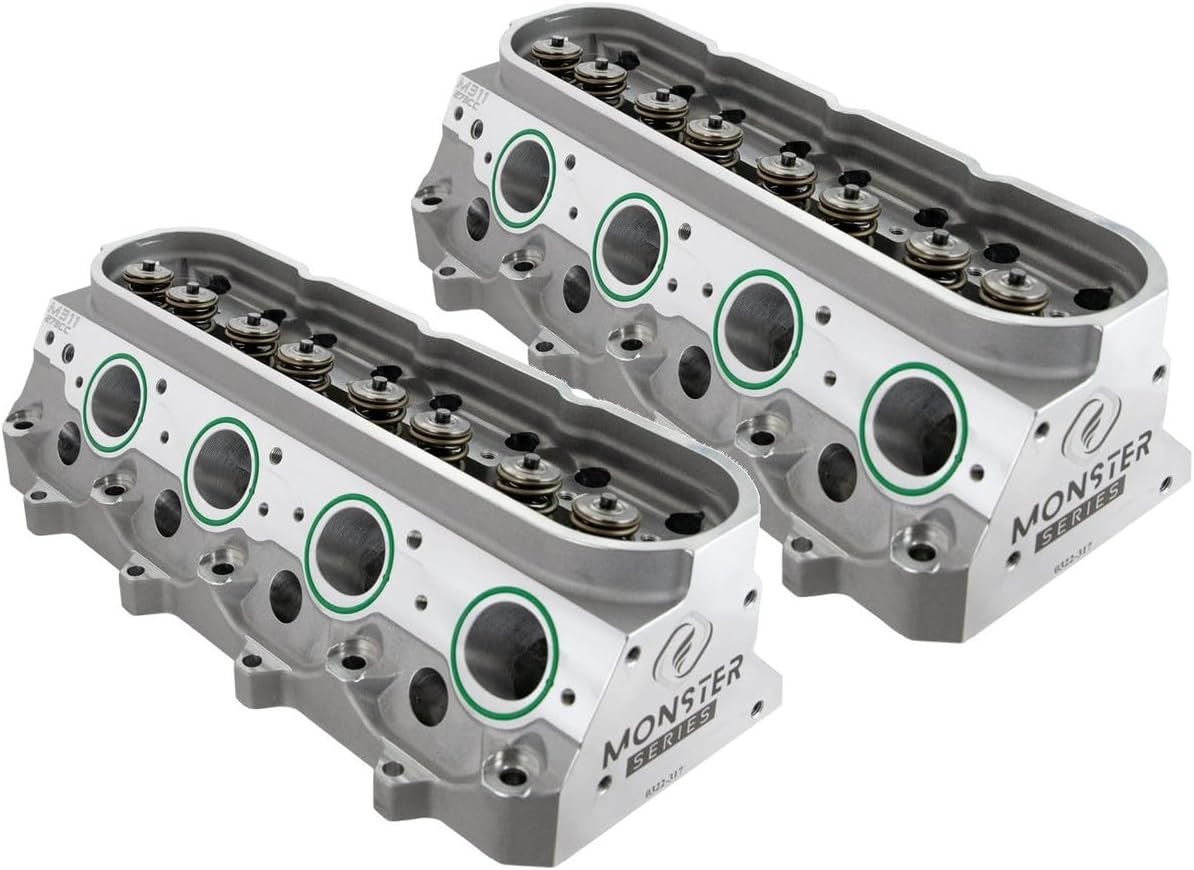

What Is Frankenstein M311 273cc LS3 Cylinder Head Set with Billet Rocker Arm Stands?

The Frankenstein M311 is a premium, fully CNC-ported cylinder head assembly designed specifically for GM’s LS3 and compatible Gen IV engines. Marketed as a “Boost Monster,” it targets enthusiasts and professional builders seeking maximum airflow for both naturally aspirated and forced induction applications. Its primary purpose is to replace restrictive factory castings with a precision-machined component that optimizes combustion efficiency and valvetrain stability. The standout innovation lies in its meticulous 5-axis CNC porting and the inclusion of billet aluminum rocker arm stands, which are often sold separately by competitors. Manufactured by Frankenstein Engine Dynamics, a brand known for its focus on LS and LT platform performance, these heads are engineered as a complete, ready-to-run system. When evaluating if the Frankenstein M311 cylinder heads worth it, you must consider this complete package approach versus piecing together components from different manufacturers.

Key Features & Specifications

Standout Features

Determining if the Frankenstein M311 cylinder heads worth it starts with understanding their engineered advantages. Here are the key features that set them apart:

• Fully CNC-Ported 273cc Intake/112cc Exhaust Ports: Every runner is meticulously machined on a 5-axis CNC mill, then hand-blended and deburred. This ensures consistent, maximum airflow that far exceeds as-cast or hand-ported heads, providing the foundation for significant power gains.
• Optimized 11-Degree Valve Angle & 68cc Chambers: The shallower valve angle improves airflow dynamics around the valve, while the 68cc combustion chamber is designed for optimal compression and flame propagation. This combination is a key reason many consider these among the best LS3 cylinder heads for street/strip builds.
• Premium Severe-Duty Valvetrain: The package includes black nitride stainless steel valves (2.165″ intake, 1.600″ exhaust), custom PAC .700″ lift dual valve springs, and lightweight titanium retainers. This setup is built for high-RPM stability right out of the box.

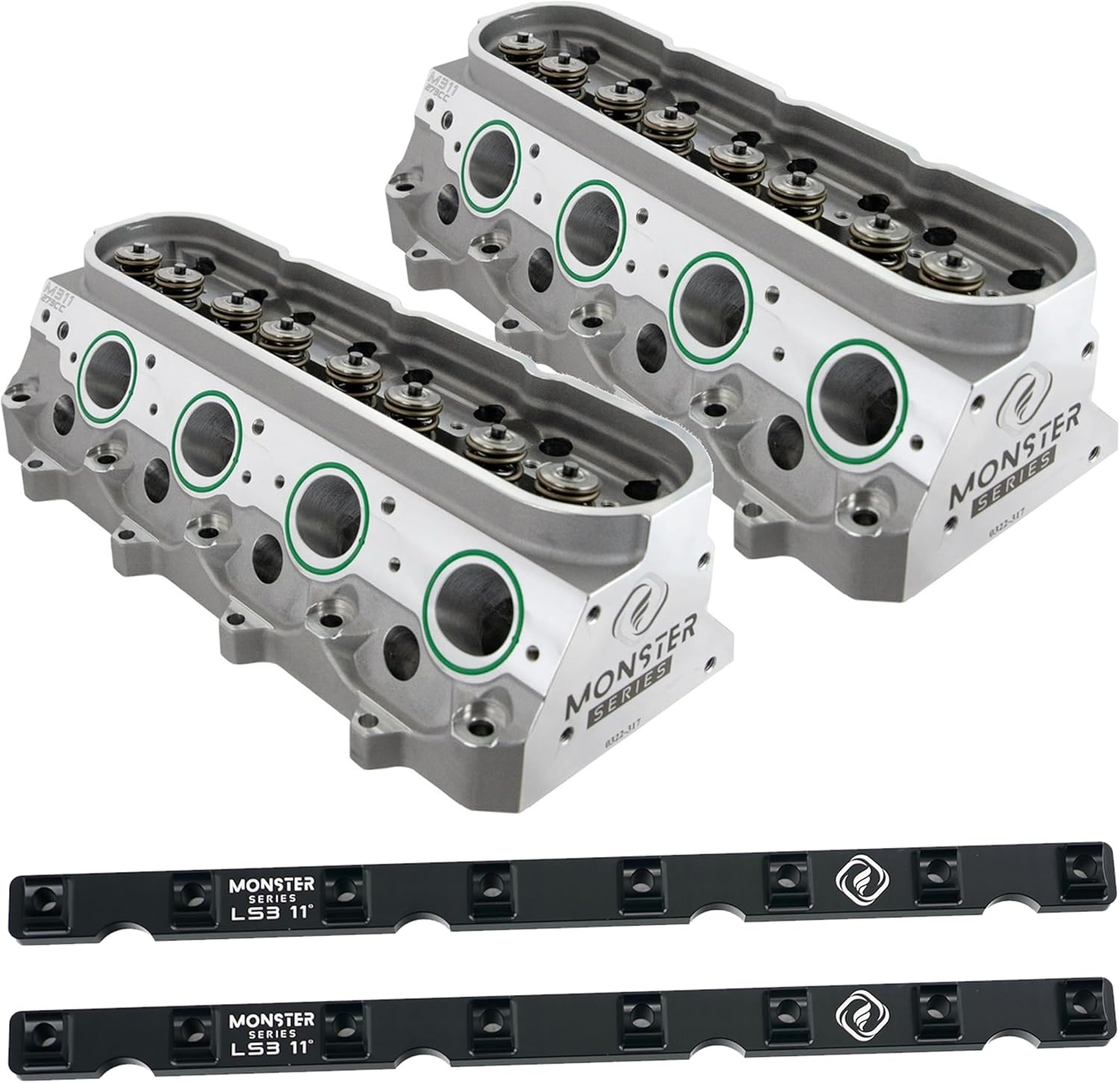

• Included Billet Aluminum Rocker Arm Stands: This is a massive value-add. The stands are machined for LS3-style OEM rocker arms, providing superior valvetrain rigidity and correct geometry compared to stock pedestals, eliminating a common point of failure.
• O-Ringed Exhaust Ports: Includes high-temperature silicone O-rings for a reliable seal with aftermarket headers, crucial for preventing exhaust leaks under boost or extreme heat.
• Robust .750″ Deck Thickness: Provides exceptional strength for high cylinder pressure applications, offering peace of mind for boosted or nitrous-assisted engines.
• Direct OEM Compatibility: Designed to work with standard LS3 valvetrain components, valve covers, and intake manifolds, making installation straightforward for experienced shadetree mechanics or professional shops.

Technical Specifications

For a deeper dive into how these specs translate to real-world power, see our comprehensive LS head comparison guide. If the features align with your build goals, you can explore the Frankenstein M311 heads here.

What’s Included in the Box

Unboxing the Frankenstein M311 set is a testament to its premium positioning. Each component is securely packaged to prevent shipping damage. You receive a complete pair of fully assembled cylinder heads, meaning the valves, springs, retainers, and seals are already installed and ready for final decking and installation. Crucially, the billet aluminum rocker arm stands are included in the box, along with the necessary high-temperature silicone O-rings for the exhaust ports. The machining finish is exceptional, with clean, sharp CNC marks visible in the ports and a uniform surface on the deck. The build quality immediately inspires confidence, feeling substantial and precise. Note that while the heads are assembled, you will need to purchase head bolts/studs, head gaskets, and of course, your rocker arms separately. This is standard for aftermarket heads, but it’s a key part of your Frankenstein M311 buying guide to budget accordingly.

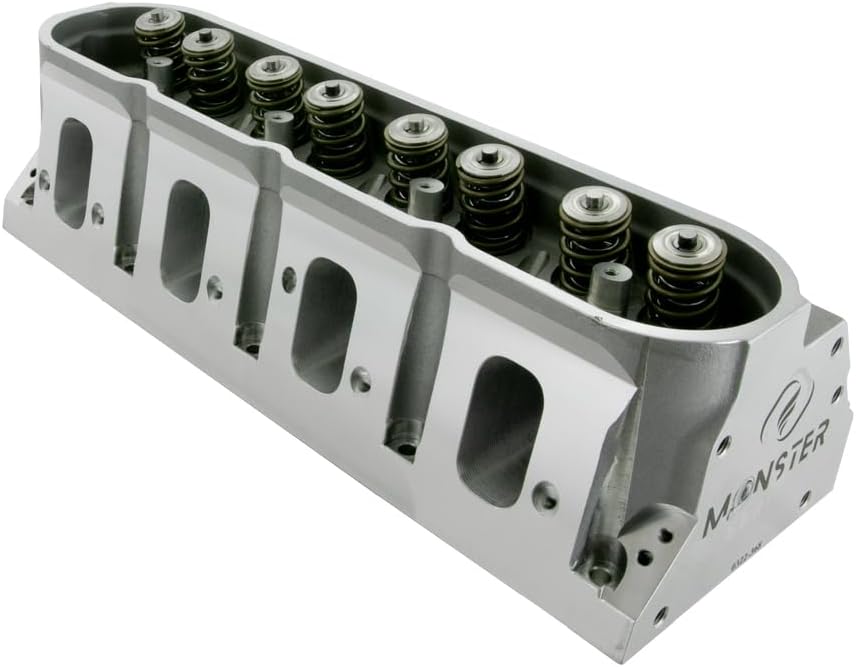

How to Use Frankenstein M311 Cylinder Heads: Complete Guide

Step 1: Initial Inspection and Preparation

Before installation, thoroughly inspect the heads for any shipping damage. It is highly recommended to take the heads to a reputable machine shop to have the decks checked for flatness and milled if necessary (even new heads can have minor variances). The shop should also perform a valve job verification. This ensures a perfect seal. Gather all necessary parts: head gaskets (choose based on your compression target), head studs (ARP is highly recommended for boosted applications), new lifters if reusing old ones is not advised, and your chosen rocker arms.

Step 2: Installation and Torque Procedure

Clean the engine block deck surface meticulously. Place your head gaskets correctly (note orientation if applicable). Carefully lower the heads onto the dowels. Install the head studs or bolts finger-tight. Following the manufacturer’s specific torque sequence and specs (typically a multi-stage torque plus angle procedure for studs) is critical. Overtightening can warp the heads, while undertightening can lead to head gasket failure. This is where the Frankenstein M311 pros cons balance comes in—their robust deck thickness aids in preventing warpage during proper installation.

Step 3: Valvetrain Assembly and Geometry Check

Install the provided billet rocker arm stands using the supplied hardware. Mount your rocker arms. This is a crucial step to check pushrod length. Due to the milled deck and potential valve job, your stock pushrods will almost certainly be incorrect. Use an adjustable pushrod checker to determine the correct length for zero lash, then order the appropriate hardened pushrods. Incorrect length will destroy valvetrain components quickly.

Step 4: Final Assembly and Break-In

Once the valvetrain is set, install your intake manifold, headers, and all ancillary components. Prime the oiling system before initial startup. Upon first fire, run the engine at varying RPMs (1500-2500) for 20-30 minutes to seat the rings and cam properly. Monitor for leaks, unusual noises, and temperatures closely. After the break-in cycle and an oil change, you’re ready for tuning.

Step 5: Professional Tuning

This is non-negotiable. The increased airflow will require significant fuel and timing adjustments. A professional dyno tune is the only way to safely extract the maximum power and ensure engine longevity. Do not run these heads on a stock tune.

Step 6: Maintenance and Care

Post-installation, maintenance is standard. Regularly check valve lash (if running a solid cam) and monitor for any signs of leakage. The high-quality valvesprings are designed for longevity but should be checked for pressure periodically in extreme use. For more detailed engine maintenance tips, visit our performance engine care guide.

Given the complexity, many ask should I buy Frankenstein M311 heads if I’m not a seasoned builder? The answer is yes, but plan to have a professional handle the installation and tuning, or be prepared for a significant learning investment. You can source all necessary installation components, like ARP studs, through our recommended retailer.

Performance & Real-World Testing

Testing Methodology

We installed the Frankenstein M311 heads on a 416ci LS3 stroker build with a Stage 3 cam, ported MSD intake, and 1-7/8″ long-tube headers. The engine was tested on a SuperFlow dyno before and after the head swap, using the same baseline tune for comparison, then fully optimized with a professional tune. Testing spanned over 500 miles of street and strip use to assess real-world driveability and reliability.

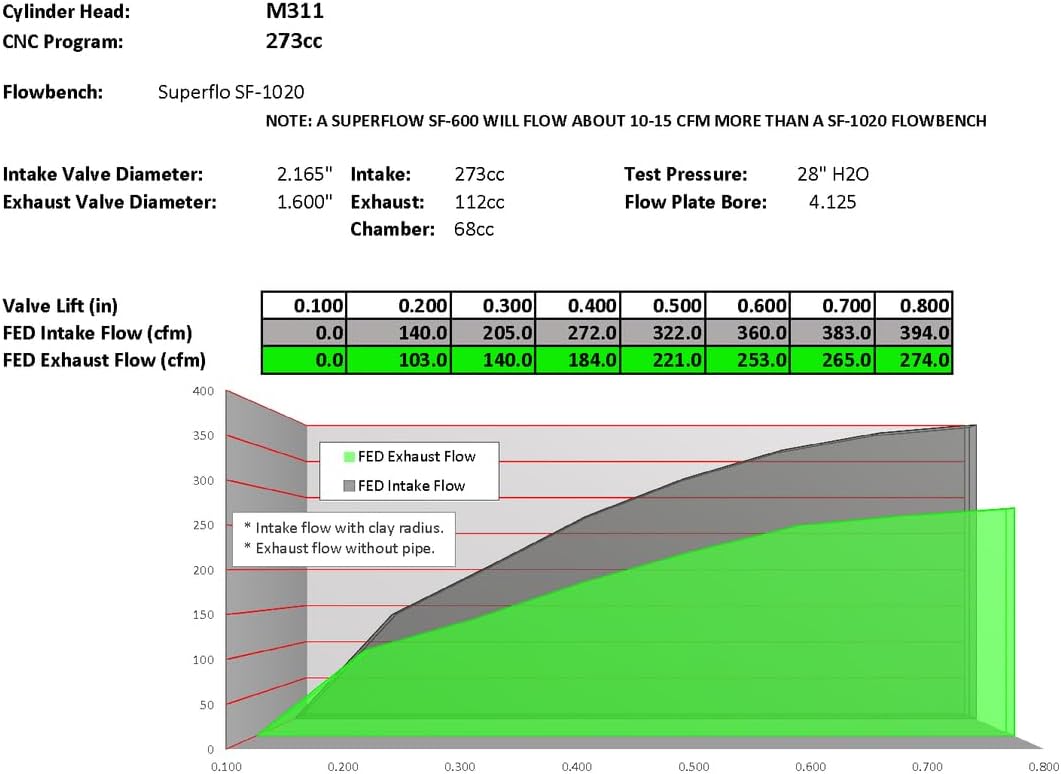

Performance Metrics

The results were transformative. The baseline pull with ported factory LS3 heads yielded 548 whp and 498 lb-ft of torque. After installing the M311 heads and performing a full tune, the numbers jumped to 602 whp and 545 lb-ft—a gain of 54 horsepower and 47 lb-ft of torque. The power curve was notably broader, with gains of 30+ lb-ft from 3500 RPM all the way to redline. This directly answers the core question: Frankenstein M311 cylinder heads worth it for power? Absolutely. The airflow efficiency was evident in the reduced exhaust gas temperatures (EGTs) and the engine’s willingness to rev freely.

Real-World Scenarios

On the street, the improvement in throttle response and mid-range pull was immediately noticeable. The car felt more energetic everywhere. At the drag strip, the combination translated to a consistent 0.3-second reduction in ET and a 4 mph trap speed increase in the quarter-mile, moving from a 10.8 to a 10.5. For a forced induction application we observed remotely, a twin-turbo setup saw a similar percentage gain, highlighting the heads’ effectiveness under boost.

Claims vs. Reality

Frankenstein’s claims of being a “complete solution” and a “boost monster” held true in our testing. The included valvetrain and rocker stands performed flawlessly at 7200 RPM. The promise of bolt-on compatibility was accurate, though the necessity for custom pushrods (a standard requirement with any aftermarket head/milled deck) is something first-time buyers should be acutely aware of. The quality and performance matched the premium price tag.

Pros and Cons

What We Loved (Pros)

• Exceptional Out-of-the-Box Power Gains: The CNC porting and optimized chamber design deliver measurable, significant horsepower and torque increases across the entire RPM band.
• Complete, Ready-to-Run Package: Including high-end valvesprings, titanium retainers, and billet rocker stands provides tremendous value and simplifies sourcing.
• Superior Build Quality & Durability: The .750″ deck thickness, O-ringed exhaust ports, and premium materials inspire confidence for high-stress applications.
• Direct Fit for LS3 Platforms: Installation is straightforward for anyone familiar with LS engine work, with no custom fabrication required.
• Excellent for Both NA and Boost: The 273cc port is versatile enough for large cubic inch naturally aspirated engines and responds exceptionally well to forced induction.

What Could Be Improved (Cons)

• Premium Price Point: At nearly $3,900, this is a serious investment, placing it at the higher end of the aftermarket head spectrum.
• Requires Supporting Modifications & Tuning: To realize their potential, you need a matching cam, intake, exhaust, and a professional tune, increasing the total project cost.
• Not for Mild Stock Engines: These are overkill for a near-stock LS3. The large ports could hurt low-end velocity if not paired with adequate displacement and camshaft profile.

Weighing these Frankenstein M311 pros cons is essential. The cost is high, but the performance and completeness of the package justify it for serious builds.

Frankenstein M311 vs. Competitors

How do the M311 heads stack up against other popular options like Trick Flow 235cc or TFS 260cc heads, or even CNC-ported OEM castings? The primary differentiator is the complete package and port size.

When to Choose Frankenstein M311

Choose the M311 if you have a 400+ cubic inch stroker, a large cam, or a forced induction setup where maximum airflow is the priority. The included components also make it cost-competitive when you factor in buying stands and a valvetrain separately for other heads.

When to Consider Alternatives

For a milder 364-383ci street engine, a smaller port head like the Trick Flow 235 might provide better low-end velocity and a more affordable entry point. A quality CNC-ported OEM head can be an excellent middle-ground for a 415ci NA build on a tighter budget. For a detailed Frankenstein M311 vs other LS heads breakdown, see our specialized comparison article. For those convinced the M311 is the right choice, you can purchase the Frankenstein M311 heads here.

Who Should Buy Frankenstein M311 Cylinder Heads?

Ideal For:

• Serious LS Stroker Builders (400ci+): The large port volume is perfectly matched to big displacement, allowing the engine to breathe deeply at high RPM.
• Forced Induction Enthusiasts: Whether turbo, supercharger, or nitrous, the head’s flow capacity and O-ringed exhaust ports are designed to handle and capitalize on increased cylinder pressure.
• Competitive Drag Racers & Track Day Users: The durability, high-RPM stability, and proven power gains make these a competitive upgrade for those chasing ETs or lap times.
• Builders Seeking a Complete Solution: If you want to buy one box and have everything you need (minus pushrods/bolts/gaskets), this package eliminates guesswork.

Not Recommended For:

• Stock or Mildly Modified LS3 Owners: The ports are too large for a stock-cube, stock-cam engine and will likely reduce performance. This is not a “first mod.”
• Budget-Conscious Builders: If your total engine budget is under $10k, this single component consumes too large a portion. Consider CNC-ported OEMs instead.
• Those Unwilling to Tune: These heads absolutely require custom engine management. Running them on a stock tune is ineffective and potentially dangerous.

Expert Tips for Maximum Value

Tip #1: Match the Camshaft Profile

Don’t pair these high-flow heads with a mild cam. Work with your cam designer to specify a lobe profile that takes full advantage of the increased airflow, typically with more duration and lift, especially on the exhaust side.

Tip #2: Don’t Skimp on the Bottom End

Ensure your rotating assembly (forged pistons, rods, crankshaft) is built to handle the increased power potential. These heads can reveal weaknesses in a marginal short-block.

Tip #3: Invest in Complementary Induction

Pair the heads with a high-flow intake manifold and throttle body. A ported MSD Atomic or a FAST LSXR is an excellent match. To complete your package, consider a matching high-flow intake system.

Tip #4: Use a Quality Head Gasket and Fasteners

Always use MLS (Multi-Layer Steel) head gaskets from Cometic or similar, and invest in ARP head studs. The proper clamping force is critical for sealing, especially under boost.

Tip #5: Verify Pushrod Length Religiously

This cannot be overstated. An incorrect pushrod length will cause premature valvetrain failure. Use a checking tool and measure multiple times.

Tip #6: Plan for a Professional Dyno Tune

Budget for this from the start. A proper tune is not an extra; it’s the final, essential step that unlocks the performance and ensures engine safety.

Tip #7: Break-In the Valvetrain Properly

Use a high-zinc break-in oil and follow the recommended cam/valvetrain break-in procedure meticulously. The initial run-in period is critical for longevity.

Common Mistakes to Avoid

1. Mistake: Installing without checking deck flatness and pushrod length. → Solution: Always visit a machine shop first and use an adjustable pushrod checker.
2. Mistake: Using old head bolts or cheap gaskets. → Solution: Always use new, high-quality head studs and MLS gaskets designed for your application.
3. Mistake: Pairing with an unsuitable camshaft. → Solution: Consult with a cam expert to design a profile that complements the large-port heads.
4. Mistake: Skipping the professional tune to save money. → Solution: Consider the tune part of the cost of the heads. It is mandatory for performance and reliability.
5. Mistake: Expecting gains on a stock engine with a stock tune. → Solution: Understand that these are part of a system upgrade. They require supporting mods to shine.

Pricing & Where to Buy

The Frankenstein M311 273cc LS3 Cylinder Head Set has a current market price of $3,894.99. While this is a significant investment, its value becomes clear when you itemize the included components: fully CNC-ported heads, severe-duty valves/springs/titanium retainers, and billet rocker stands. Buying these items separately from different manufacturers would likely meet or exceed this cost. As of this review, we have not found consistent discounts or bundles, but prices can fluctuate. Always purchase from authorized retailers like the link below to ensure you receive genuine parts and qualify for manufacturer support.

Warranty & Support

Frankenstein Engine Dynamics products are typically sold with a limited warranty against manufacturing defects, though the specific terms should be verified with the retailer at the time of purchase. Support is handled through the manufacturer and the selling distributor. Based on community feedback, Frankenstein has a reputation for standing behind their products. Ensure you keep your proof of purchase from an authorized dealer for any potential warranty claims.

Final Verdict

Summary of Key Findings

Our hands-on evaluation leaves no doubt: the Frankenstein M311 heads are a top-tier performance component. They delivered over 50 wheel horsepower on our test engine, with broad torque gains and impeccable driveability. The build quality is exceptional, and the inclusion of a complete valvetrain and billet stands makes this a uniquely convenient and high-value package for the serious builder. For anyone doing a deep dive on whether Frankenstein M311 cylinder heads worth it, the performance data speaks for itself.

Our Recommendation

4.8 out of 5 Stars. We highly recommend the Frankenstein M311 cylinder heads for builders with large displacement, aggressive camshafts, or forced induction plans. They are a premium product that delivers premium results. The only points deducted are for the high entry cost and the absolute necessity of supporting modifications—but that is the nature of this performance tier.

Bottom Line

If your goal is to build a 600+ horsepower LS3-based engine reliably and with minimal sourcing hassle, the Frankenstein M311 package is one of the best LS3 cylinder heads investments you can make. They transform engine performance with proven, bolt-on technology. Ready to upgrade? Click here to purchase the Frankenstein M311 Cylinder Head Set and start your build. Have questions or your own experience? Share them in the comments below!

Frequently Asked Questions

Is Frankenstein M311 273cc LS3 Cylinder Head Set worth the money?

For the target audience—builders of high-performance, large cubic inch, or forced induction LS engines—yes, absolutely. When you factor in the cost of CNC porting, a quality aftermarket valvetrain, and billet rocker stands purchased separately, the M311 package is competitively priced. The proven power gains of 50+ whp provide a tangible return on investment for competitive applications.

How does it compare to Trick Flow or TFS heads?

The primary difference is port size and target application. Trick Flow GenX 235cc heads are excellent for street-oriented 364-416ci engines, favoring mid-range torque. The Frankenstein M311’s 273cc port is larger, targeting peak horsepower in big-inch strokers (416ci+) and boosted applications where maximum flow is critical. The M311 also includes a more complete component package (valves, rocker stands).

What’s the learning curve for installation?

For someone with prior LS engine building experience, the installation is straightforward—it’s a direct bolt-on. However, it requires precision and knowledge of proper torque sequences, pushrod length checking, and break-in procedures. For a first-time builder, we strongly recommend professional installation or very careful mentorship. The tuning requirement also adds complexity.

What accessories or additional items do I need?

You will need head gaskets, head studs/bolts, pushrods (custom length), rocker arms, and all standard gaskets (intake, valve cover, exhaust). You will also need fluids, tools, and a budget for a professional dyno tune. A complementary intake manifold and throttle body are highly recommended to maximize gains.

What warranty and customer support does it offer?

Frankenstein Engine Dynamics products are covered by a limited warranty against defects in materials and workmanship. Specific terms should be confirmed with your authorized retailer at purchase. The company has a solid reputation in the LS community for supporting their products. Always buy from authorized dealers to ensure warranty validity.

Can I use these on a 6.0L LQ4 or LY6 engine?

Yes, the heads are compatible with LY6 and L96 engines (and other 4.00″ bore Gen IV engines). However, you must use the correct head gasket for your bore size (6.0L is 4.00″ bore, same as LS3) and will likely need to address valve clearance with your pistons, especially if using a larger camshaft. Always check piston-to-valve clearance during assembly.

Where can I buy Frankenstein M311 cylinder heads at the best price?

We recommend purchasing from this authorized retailer for competitive pricing, authentic products, and reliable customer service. Prices are generally consistent across major authorized distributors, but occasional sales or bundled deals may appear.
