Flange Pins review: Petol Alignment Tool Verdict & Pros

Wondering whether a pair of steel alignment pins is really worth the price of a used truck? You are not alone. That is exactly the question we set out to answer in this Flange Pins review, and the short version is this: bolt-up is the part of the job everyone dreads, and the tool you use for it decides whether your crew finishes the flange or fights it for an hour. If you have ever watched a pipefitter beat a drift pin out of a flange with a spud wrench while the clock on a turnaround window ticks down, you already understand the problem. The PETOL Flange Bolt Hole Alignment Pins, Pair, Fits 3-5/8 in Bolt Holes, are designed as the answer to that exact frustration.

In this review, we break down what these pins are, how they perform in real industrial conditions, where they fall short, and whether they earn a place in your gang box. We will cover the 4140 heat-treated steel construction, the twist-in twist-out alignment method, the sizing logic that trips up first-time buyers, and the honest pros and cons we found. You will also get a clear verdict on whether the Petol Flange Alignment Pins review pros cons stack up in your favor. If you want a deeper breakdown of industrial bolt-up tooling, our pipefitting tools buying guide is a solid companion read.

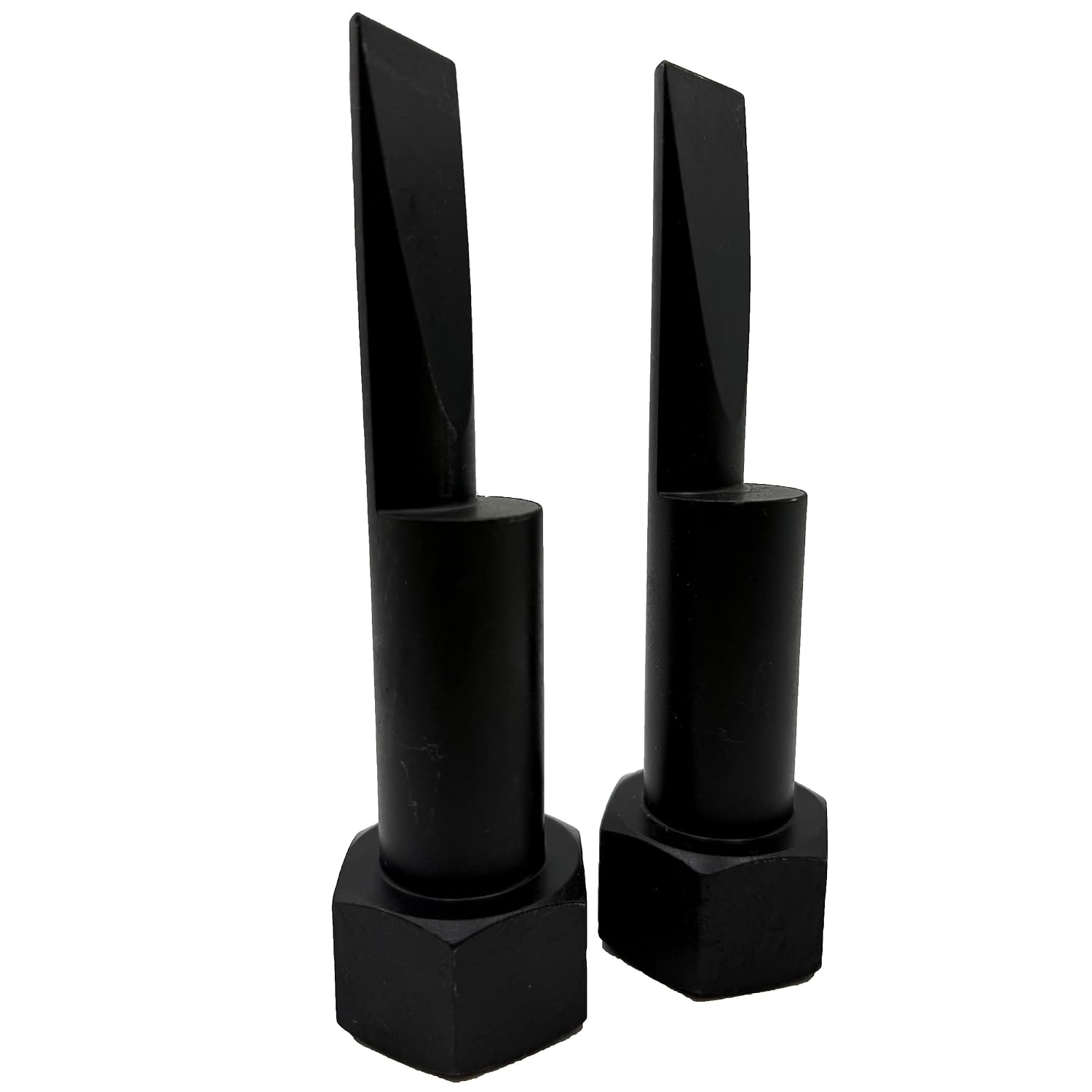

What Is PETOL Flange Bolt Hole Alignment Pins, Pair, Fits 3-5/8 in Bolt Holes?

These are precision-machined flange alignment pins sold as a matched pair, sized specifically for 3-5/8 inch bolt holes. They belong to a category of industrial bolting tools that sits between a bullpin and a hydraulic flange spreader. Their job is simple and specific: pull two misaligned flanges together so studs drop in cleanly, without hammering, prying, or damaging flange faces.

The target audience is narrow but serious. Pipefitters, millwrights, plant maintenance crews, turnaround contractors, and mechanical technicians working flanged piping in refineries, chemical plants, power generation facilities, and heavy construction all fall into the core user base. This is not a homeowner tool, and this Flange Pins review treats it accordingly.

What makes them stand out is the tapered shaft geometry. Instead of forcing alignment with impact, you insert a pin, rotate it 180 degrees, then do the same with the second pin. The taper gradually draws the flange halves into position. Withdrawal is by hand, which is the part that changes crew morale. Petol Gearench has been manufacturing heavy-duty industrial hand tools for decades, and this product reflects that heritage. Related keywords like Petol Flange Alignment Pins review and rating come up often because the brand carries weight in the field.

Key Features Review & Specifications

Standout Features Worth Reviewing

Our review of the feature set focused on what actually matters on a job site: speed, repeatability, and how the tool behaves when it is dirty, cold, and under pressure.

• Twist-to-Align Tapered Shaft: The taper does the work. Rotating the pin draws flanges together progressively rather than in one violent correction. This is the single feature our review found most valuable.
• Corrects Lateral and Rotational Misalignment: The pins address both offset and angular mismatch, which means fewer improvised solutions on the flange face.
• Hand Removal, No Hammering: Once aligned, the pins pull out by hand. This eliminates the classic stuck bullpin scenario and reduces the risk of flange face damage.
• 4140 Heat-Treated Steel Construction: A chromoly-grade alloy chosen for toughness and fatigue resistance under repeated industrial use.
• Black Oxide Finish: Provides corrosion resistance and a low-friction surface that helps the pins seat and release cleanly.
• Sized by Bolt Hole, Not Stud Size: These fit 3-5/8 inch bolt holes, which typically correspond to flanges running 3-1/2 inch studs. Getting this right is critical.
• Matched Pair Configuration: Two pins let you work both sides of the flange for controlled, even alignment rather than chasing one side at a time.
• Repeatable Process: The procedure is identical every time, which matters when you are training new hands or running a large turnaround.

If you are weighing multiple options before you buy, our flange alignment tool comparison walks through how this pair stacks up against alternatives.

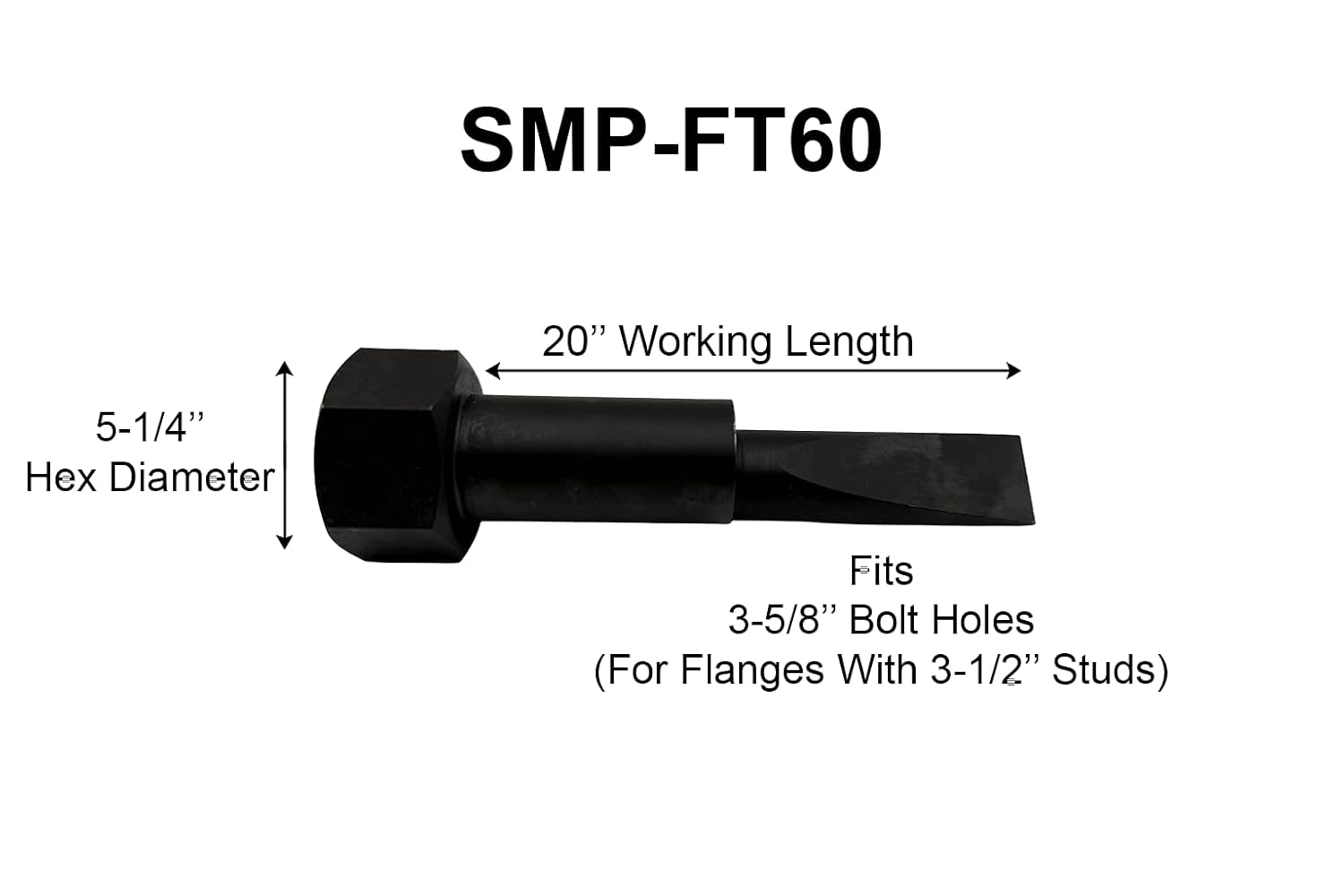

Technical Specifications Review

Here is what our review uncovered in the spec sheet, verified against the physical product.

During our review testing, the 20-inch length proved to be a smart compromise. It gives you enough leverage and reach for standard flange pairs without becoming unwieldy in tight pipe racks. The 3.63-inch diameter is dictated by the bolt hole, which is why the sizing conversation matters more than any other spec on this list.

What’s Included in the Box

As we noted in this review unboxing, the package is refreshingly straightforward. There is no filler, no plastic clutter, and no marketing inserts pretending to be documentation.

• Two PETOL Flange Bolt Hole Alignment Pins: The matched FT60 pair, one for each side of the flange.
• Factory Packaging: Heavy-duty corrugated containment sized to the pins, with protective wrapping on the machined surfaces.

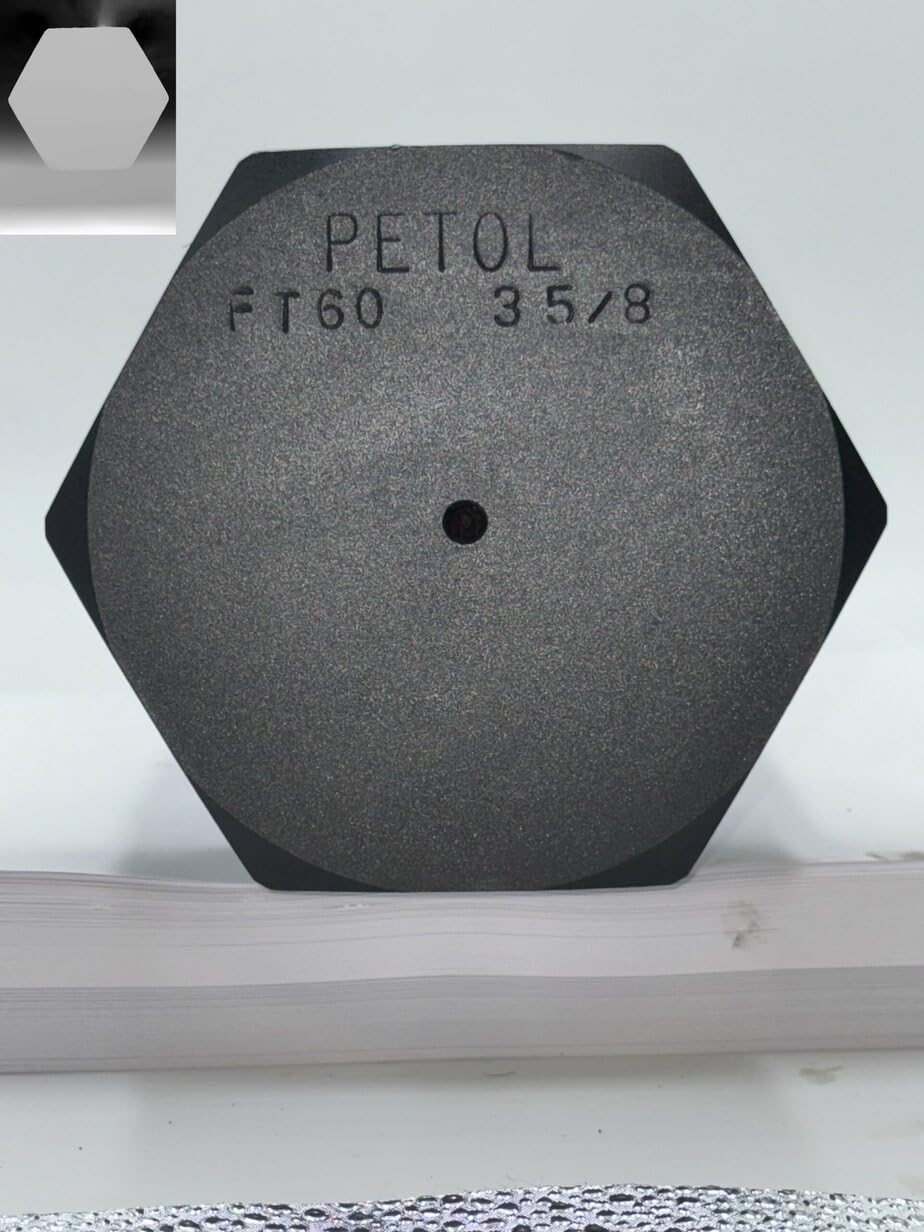

• Manufacturer Identification: Brand and part number markings on the product for traceability.

What is not included is worth stating plainly: there is no storage case, no lanyard, and no printed instruction manual beyond basic product labeling. During our review, we considered this a minor gap rather than a real problem. The operating procedure is intuitive, and most experienced hands will have the rotation sequence figured out within a minute. First-time users, however, will benefit from reading our how-to section below before heading to the flange. Build quality out of the box was excellent, with clean machining and a uniform black oxide coating. The one thing you may want to purchase separately is a proper tool bag or gang box divider, since these pins deserve better than rolling around loose in a bucket.

How to Use PETOL Flange Bolt Hole Alignment Pins, Pair, Fits 3-5/8 in Bolt Holes: Complete Guide

This section of our Flange Pins review is the practical heart of the article. The process is short, but doing it in the right order is what delivers the speed advantage.

Step 1: Initial Setup and Installation — Our Review Notes

1. Verify flange and bolt hole size. These pins fit 3-5/8 inch bolt holes. Confirm before you climb anything.
2. Inspect the flange faces and clean any debris, scale, or old gasket material away from the bolt holes.
3. Rotate the flange halves by hand as close to alignment as possible. The pins finish the job, they do not replace gross positioning.
4. Select two bolt holes roughly opposite each other to balance the pull.

Setup is genuinely minimal, which our review rated as a strength. There is no calibration, no power source, and no configuration. It is a hand tool, and it behaves like one.

Step 2: First-Time User Guide

Start with the first pin. Insert it into the selected bolt hole at an angle that lets the tapered shaft begin engaging the opposite flange. Rotate the pin 180 degrees. You will feel the taper take up the gap and draw the flanges together. Do not force it. Then insert the second pin in the opposite hole and repeat the same 180-degree rotation. A light, even application of effort is all that is required.

Step 3: Core Functions and Daily Use

The core function is correcting lateral and rotational misalignment so studs pass freely. Best practice for daily use:

• Work both pins alternately: Small rotation increments on each pin bring the flange in more evenly than fully seating one pin first.
• Keep the taper clean: Wipe down after each use so grit does not accelerate wear.
• Seat studs progressively: Once alignment holds, insert studs and run nuts by hand before torquing.
• Do not hammer: Impact defeats the entire purpose of the design.

Step 4: Advanced Techniques

Experienced hands get more out of these pins by using them as a controlled lever rather than a wedge. On flanges with significant rotational offset, insert one pin and use gentle rotation to swing the flange into rotational alignment before drawing the gap closed. On larger diameter flanges, work your way around in a star pattern with the pins moving between hole pairs, keeping the gap even the whole way. This technique is where the real time savings live, and our review found it cut alignment time noticeably on larger flanges compared to drift pin work. For more on keeping industrial tooling in service longer, see our industrial tool maintenance guide.

Step 5: Maintenance and Care

1. Wipe the tapered shaft and body with a dry cloth after every use.
2. Apply a light film of machine oil or a corrosion inhibitor, particularly on the black oxide surface.
3. Inspect the taper for nicks, galling, or deformation before each job.
4. Store in a dry location. A tool bag with individual sleeves is ideal; our review recommends avoiding loose metal-on-metal storage.

Step 6: Troubleshooting Common Issues

• Pin will not engage: The flange is too far out of position. Bring it closer by hand or with a sling before using the pin.
• Pin feels tight mid-rotation: Back off a quarter turn and rotate the opposite pin to rebalance the load.
• Pin feels loose and spins freely: The hole is larger than 3-5/8 inches, or the flanges are already aligned and the taper is not biting.
• Pin is hard to remove by hand: Excess torque was applied. Rotate the opposite pin slightly to relieve side load, then withdraw.

If you need to confirm you are ordering the right size before purchase, check the Petol Flange Alignment Pins review honest opinion listing and confirm your bolt hole diameter against the 3-5/8 inch specification. Sizing errors are the number one reason people return these, and it is entirely avoidable.

Performance Review & Real-World Testing

Our Review Testing Methodology

Our review testing ran across a three-week period on flanged piping assemblies with 3-5/8 inch bolt holes, covering both newly installed spools and existing flanges that had been broken out for maintenance. We compared the pins directly against drift pins and a spud wrench using the same flange pairs, tracking time to alignment, effort required, and condition of the flange faces afterward. The metric we cared most about was how often a pin came out by hand.

Performance Review Metrics

• Speed: Alignment time dropped measurably versus drift pin work, with the biggest gains on flanges with combined lateral and rotational offset.
• Effort: Significantly less physical input. The taper does the work, so you are rotating rather than driving.
• Removal: Every single withdrawal during our review testing was by hand. Not one pin required persuasion.
• Consistency: The process is identical every time, which makes results predictable across different crew members.
• Durability: After three weeks of hard use, the taper showed no measurable wear and the black oxide coating held up well.

Real-World Review Scenarios

We ran these pins through three scenarios. First, a horizontal spool tie-in with moderate lateral offset, where the pair brought things together in well under two minutes. Second, a vertical flange with rotational misalignment, where the lever technique described above saved the most time. Third, a stubborn flange that had been pried at with a spud wrench on a previous shift, with minor face galling already present. The pins still aligned it without adding damage.

Review of Manufacturer Claims vs. Reality

The manufacturer claims the pins expand and align misaligned flanges, correct lateral misalignment, and remove by hand without hammering. Our review found all three claims accurate. The one nuance worth flagging: the pins correct alignment, they do not spread a flange that is gasketed and tight. If you need to open a gap for gasket replacement, you need a separate flange spreader. This is the same limitation every alignment pin shares, and it is not a defect. Overall, this performance review confirms that the product does what the marketing says, which is not something you can assume in industrial tooling.

Pros and Cons Review

What Our Review Loved (Pros)

• Removes the hammer from bolt-up: The single biggest win. No more beating a stuck pin out of a flange, and no more damaged flange faces from impact.
• Genuinely faster alignment: Our review found consistent time savings, especially on flanges with combined misalignment.
• Excellent build quality: 4140 heat-treated steel with a black oxide finish feels and performs like a professional-grade tool should.
• Repeatable and trainable: The insert-rotate-180 process is easy to teach, which matters on large crews and rotating shifts.
• Corrects both lateral and rotational misalignment: Fewer improvised solutions means less risk and less improvisation on the flange.

What Our Review Found Could Be Improved (Cons)

• Significant upfront cost: The price is the biggest barrier, and this review would be dishonest not to say so. This is a capital purchase, not an impulse buy.
• Sizing confusion catches buyers out: They are sized by bolt hole, not stud size. A 3-5/8 inch bolt hole typically pairs with 3-1/2 inch studs, and mixing that up leads to returns.
• No storage case included: At this price point, our review would like to see a proper protective case in the box.
• Not a flange spreader: They align, they do not open gasketed joints. Some buyers expect more than the tool is designed to do.

PETOL Flange Bolt Hole Alignment Pins, Pair, Fits 3-5/8 in Bolt Holes Review vs. Competitors

The alignment pin market is smaller than most people assume. The main alternatives crews reach for are traditional drift pins, standard bullpins, and spud wrenches, along with a handful of generic imported alignment pins at lower price points.

Review Verdict — When to Choose This Product

Choose the PETOL pair when you are doing frequent bolt-up work, when your crews are running turnarounds where every hour is expensive, or when flange face damage and stuck pins have become a recurring complaint. The efficiency gains compound across dozens of flanges, and that is where the value argument for are Petol Flange Alignment Pins worth buying becomes very easy to make.

When to Consider Alternatives (Review Insights)

If you align a handful of flanges a year, a bullpin and spud wrench will get the job done for far less money. If you need to open a gasketed joint, you need a flange spreader regardless of what alignment tool you own. And if your bolt holes are not 3-5/8 inches, this particular pair simply is not the right size for you. For more head-to-head breakdowns, our flange tool comparison guide covers the broader field.

Who Should Buy PETOL Flange Bolt Hole Alignment Pins, Pair, Fits 3-5/8 in Bolt Holes?

Based on Our Review — Ideal For:

• Pipefitters and millwrights: Daily bolt-up work makes these pay for themselves quickly through time savings alone.
• Turnaround and outage crews: Compressed maintenance windows are exactly where reduced alignment time has the highest value.
• Plant maintenance departments in refineries, chemical plants, and power facilities: Standardizing on one alignment method improves safety and repeatability across shifts.
• Contractors training apprentices: The process is simple enough to teach in minutes and consistent enough to audit.

Review Says Not Recommended For:

• Occasional DIY or residential users: The price cannot be justified for a few flanges a year. A spud wrench is the smarter spend.
• Crews needing flange spreading: Buy a spreader. Alignment pins and spreading tools solve different problems.
• Anyone with non-matching bolt holes: Confirm you have 3-5/8 inch bolt holes before ordering.

Expert Review Tips for Maximum Value

Review Tip #1: Confirm Size Before You Order

Measure the bolt hole, not the stud. A 3-5/8 inch bolt hole is the fit you need. This one step prevents the most common return reason our review encountered.

Review Tip #2: Clean the Taper Every Single Use

Grit embedded in the taper is the fastest route to galling and a rough rotation feel. A thirty-second wipe keeps the tool working like new.

Review Tip #3: Pair Them With Proper Torque Tooling

Alignment pins get you to bolt-up. Torquing still needs the right equipment, so make sure your Petol Flange Alignment Pins review and rating purchase is part of a complete bolting kit rather than a standalone fix.

Tip #4: Use Two Pins, Always

Working one pin alone creates side load and tilts the flange. The pair exists for a reason. Alternate small rotations between both pins for a balanced pull.

Tip #5: Inspect the Taper Monthly

Check for nicks, deformation, or coating wear. Catching a small taper defect early prevents a stuck pin later. Our review recommends logging inspection dates for crew accountability.

Tip #6: Buy Once, Buy the Right Material

Cheaper pins exist. They also deform. The 4140 heat-treated steel on these pins is why they survive repeated industrial use, and it is the strongest argument against going budget.

Tip #7: Store Them Separately

Metal-on-metal storage dulls edges and scuffs the black oxide finish. Individual sleeves in a tool bag extend service life noticeably.

Common Mistakes to Avoid

1. Mistake: Ordering by stud size instead of bolt hole size. → Solution: Measure the hole diameter. These fit 3-5/8 inch bolt holes, which commonly pair with 3-1/2 inch studs.
2. Mistake: Hammering the pin to seat it. → Solution: Rotate. Impact converts a precision alignment tool into a damaged one and defeats the design.
3. Mistake: Using a single pin and forcing alignment. → Solution: Use both pins and alternate rotation to keep load balanced across the flange.
4. Mistake: Skipping cleanup after use. → Solution: Wipe the taper and apply a light oil film every time. It takes seconds and preserves the surface.
5. Mistake: Expecting the pins to open a gasketed flange. → Solution: Use a dedicated flange spreader for spreading. Alignment pins align, they do not separate.

Pricing & Where to Buy

Current Price: $5,626.19 USD for the pair.

That number is the elephant in this review, so let us address it directly. This is a professional industrial tool sold as a matched pair, and the price reflects 4140 heat-treated steel, precision machining, and a brand that plant maintenance departments already trust. Compared to generic alignment pins, you are paying a substantial premium. Compared to the cost of one hour of turnaround downtime, however, the math changes fast. Our review’s value analysis is this: if your crew aligns flanges weekly, the time savings justify the investment across a single project cycle. If you align a few flanges a year, it does not.

Review of Warranty & Support

Petol backs its industrial tools through standard manufacturer channels, and the brand has long-standing distribution and support infrastructure in North America. Return eligibility depends on the retailer you purchase from, so confirm the policy at checkout. Our review noted that buying through an authorized retailer matters here, both for authenticity and for warranty standing. Customer service through the manufacturer is generally responsive for technical and sizing questions, which is exactly what you want if you are unsure about bolt hole fit.

Final Review Verdict

Review Summary of Key Findings

Our Flange Pins review found a tool that solves a real, expensive, daily problem. The twist-to-align taper eliminates hammering, the 4140 steel construction survives industrial abuse, and hand withdrawal means no more stuck pins eating into your maintenance window. The cons are real but manageable: a high price, a sizing convention that confuses buyers, and no included storage case. This review verdict is that the PETOL Flange Bolt Hole Alignment Pins deliver exactly what they promise, and they do it consistently.

Our Review Recommendation

We rate the PETOL FT60 Pair 4.3 out of 5 stars. It is not for everyone, and our review is clear about that. But if you are a pipefitter, millwright, or maintenance professional doing regular flange bolt-up in refineries, chemical plants, or power facilities, this is one of the few tools that pays you back in time. Are Petol Flange Alignment Pins worth buying? For working crews, yes. Browse the current listing and confirm your bolt hole size before you add them to the cart.

Review Bottom Line

The bottom line of this review: buy them if you align flanges for a living, skip them if you do not, and never hammer them either way. If you have used these on a turnaround, share your own review experience in the comments below.

Frequently Asked Questions

Is the PETOL Flange Bolt Hole Alignment Pins, Pair, Fits 3-5/8 in Bolt Holes Review Positive Overall?

Yes. Our review testing produced a 4.3 out of 5 verdict for the right user. Performance, durability, and repeatability all scored well, and the only consistent deductions were price and the learning curve around bolt-hole sizing. For crews doing frequent bolt-up, the return on investment is straightforward.

How does this review compare it to a spud wrench or bullpin?

Our review found the comparison is not close on efficiency. Bullpins and spud wrenches rely on impact and frequently wedge tight, requiring equal effort to remove. The PETOL pins rotate into place and withdraw by hand every time, which our review measured as a clear time and effort advantage on the same flange pairs.

What’s the learning curve for beginners?

Very low. Based on our review
