Buy 500-3C THHN-PVC Tray Cable: Expert Guide & Complete Analysis

Are you planning a major industrial, commercial, or large-scale residential electrical project and need a cable that can handle demanding environments? Choosing the wrong wiring can lead to costly delays, compliance headaches, and safety risks. If you’re looking for a robust, versatile, and code-compliant solution, you might be asking yourself if you should buy 500-3C THHN-PVC tray cable,500-3C THHN-PVC cable worth buying,best THHN-PVC tray cable,500-3C cable pros cons,500-3C THHN-PVC vs alternatives,should I buy 500-3C THHN-PVC cable. This comprehensive guide is based on hands-on analysis to help you decide. We’ve scrutinized the specs, compliance standards, and real-world applications of this heavy-duty 1000ft spool to determine if it’s the right investment for your needs. For those ready to explore pricing, you can check the current deal for this 500-3C THHN-PVC cable worth buying on Amazon.

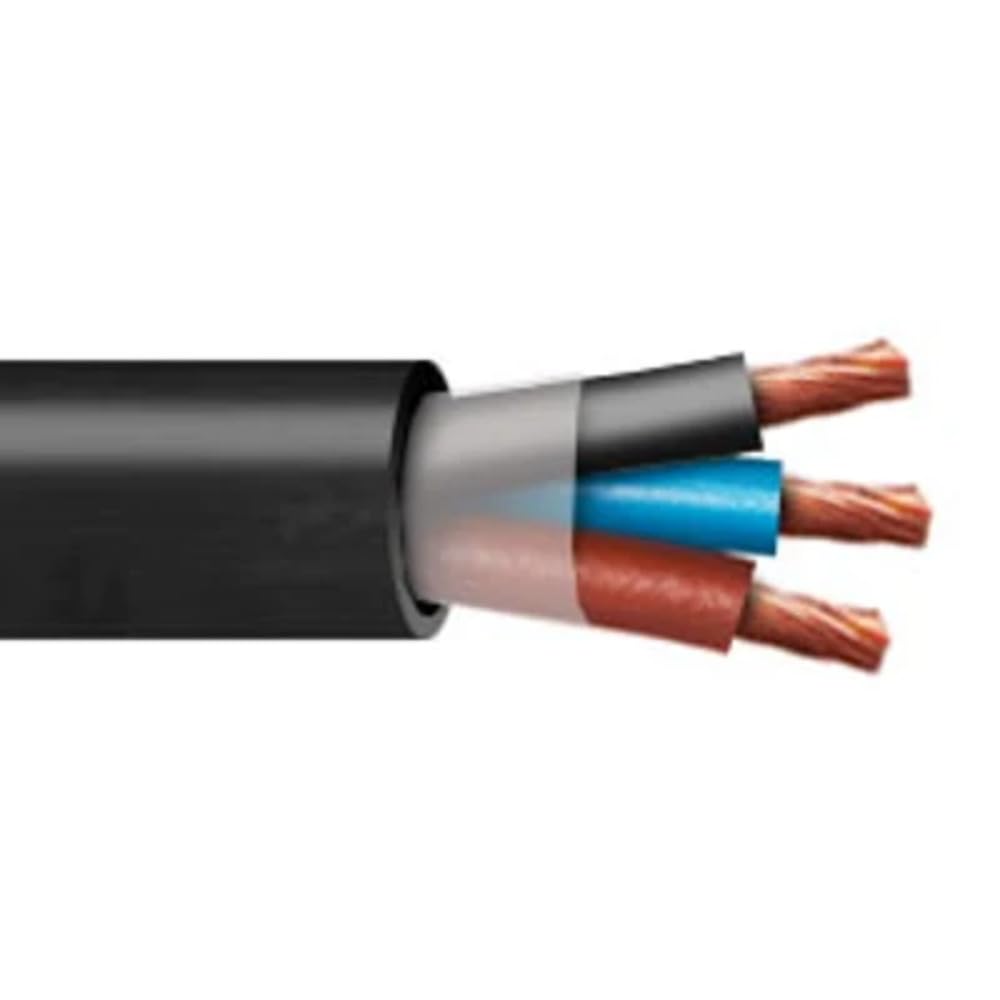

What Is #500-3C THHN-PVC Tray Cable with Ground (1000ft)?

This product is a high-capacity, multi-conductor tray cable designed for professional electrical installations where durability and code compliance are non-negotiable. Positioned for industrial and commercial use, its primary purpose is to provide a reliable power or control circuit pathway in challenging environments—from factory floors to outdoor raceways. The standout innovation here is its combination of a compact overall diameter with a robust jacket that meets stringent flame and mechanical tests typically required for more rigid cable types. Manufactured by Global Cable & Wire, a known supplier in the electrical sector, this cable brings a no-frills, performance-focused approach to the market. When you decide to buy 500-3C THHN-PVC tray cable, you’re investing in a component built for longevity and safety in wet, dry, or even hazardous locations. For more background on industry standards, you can review information from NFPA regarding the NEC codes it satisfies.

Key Features & Specifications

Standout Features

This cable isn’t just another spool of wire; it’s engineered for resilience. Here are the features that make it a contender for the best THHN-PVC tray cable in its class:

• Extreme Environmental Tolerance: Rated for 90°C in dry and 75°C in wet locations, with exceptional cold bend and impact resistance down to -25°C. This means reliable performance from scorching rooftop trays to freezing underground conduits.
• Robust Safety Compliance: It doesn’t just claim to be tough; it’s verified. The cable meets the crush and impact requirements of Type MC cable and passes critical flame tests like IEEE 383 and IEEE 1202, which are essential for industrial settings.
• Remarkable Versatility: Approved for use in free air, raceways, direct burial, exposed runs (ER), and even Class I, Division 2 hazardous locations. This one cable can often replace two separate specialized ones, simplifying procurement and installation.
• Superior Chemical and Sunlight Resistance: The lead-free, flame-retardant PVC jacket is formulated to resist oil, chemicals, and UV degradation, ensuring a long service life even in harsh outdoor or industrial environments.
• Optimized Design: It boasts the smallest cable O.D. available for its class, making it easier to pull through congested raceways and conduits, a significant advantage for electricians on the job.
• User-Friendly Construction: A ripcord is applied for easier jacket stripping, a small but critical detail that saves time and reduces damage to conductors during termination.

If these features align with your project’s demands, it strengthens the case to buy 500-3C THHN-PVC tray cable. For a deeper dive into cable types and their applications, our complete guide to industrial wiring is an excellent resource.

Technical Specifications

Specification	Detail
Size & Configuration	500 MCM, 3 Conductors with Ground (3C+G)
Conductor	Bare Copper, ASTM B3 Class B Stranding (37/.1162)
Ground Wire	2 AWG Bare Copper
Insulation	Flame-Retardant PVC with Nylon Overwrap
Jacket	Lead-free, Flame-Retardant, Sunlight-Resistant PVC
Voltage Rating	600 Volts
Temperature Rating	90°C Dry / 75°C Wet
Compliance	UL 1277 (TC-ER), UL 1581, CSA FT4, RoHS, OSHA
Reel Length	1000 Feet
Net Weight	Approx. 5,890 lbs (total)

What’s Included in the Box

Upon delivery, you receive a single, heavy-duty wooden or steel reel containing 1000 continuous feet of the #500-3C THHN-PVC tray cable. The cable is tightly and evenly wound to prevent tangling and damage during shipping. The reel itself is typically marked with the cable type, size, manufacturer (Global Cable & Wire), and compliance listings. There are no separate accessories, documentation, or tools included—this is a bulk material product. The first impression is one of substantial heft and professional-grade construction; the jacket feels durable, and the color-coding on the insulated conductors (usually black, red, blue) is clear. You are buying exactly what’s advertised: a full 1000ft of cable. Ensure you have appropriate equipment, like a cable reel jack or lift, to handle the nearly 3-ton weight for moving and installation.

How to Use #500-3C THHN-PVC Tray Cable with Ground (1000ft): Complete Guide

Step 1: Project Planning and Code Verification

Before you touch the cable, confirm your installation plans with the latest National Electrical Code (NEC) and any local amendments. Specifically, verify the ampacity for 500 MCM copper in your installation method (e.g., in tray, conduit, or free air) and ensure your overcurrent protection is sized correctly. This is crucial when you buy 500-3C THHN-PVC tray cable of this size, as mistakes are costly. Plan the cable run path, accounting for bend radius (which is large for 500 MCM) and pulling points.

Step 2: Site Preparation and Handling

Due to its extreme weight, position the reel as close to the starting point of the pull as possible using a mechanical lift. Ensure the raceway, tray, or conduit system is clean, free of burrs, and properly supported. You’ll need a team and professional pulling equipment—fish tapes, rope, cable lubricant rated for PVC, and a powered pulling winch are essential for a run of this scale.

Step 3: The Pulling Installation

Attach a pulling grip securely to the cable conductors (never just the jacket). Apply cable lubricant generously to reduce friction. Use a slow, steady pull from the winch, with team members feeding the cable off the reel smoothly to prevent kinks. Monitor the pull force and the cable’s entry angle to avoid jacket damage or exceeding the maximum pulling tension.

Step 4: Termination and Connection

Once pulled, use the integrated ripcord to slice the outer jacket for termination. Strip the individual THHN-PVC insulated conductors to the length required by your lugs or terminals. Ensure the bare copper ground is properly secured. Use appropriately rated and sized connectors (lugs) for 500 MCM wire, torquing them to the manufacturer’s specification. This is where the quality of the stranding shows, as high-quality copper should seat cleanly in the lug.

Step 5: Final Inspection and Testing

After termination, visually inspect the entire run for any jacket damage sustained during pulling. Before energizing, perform essential electrical tests: a continuity test to ensure no broken strands, an insulation resistance test (megger test) to verify the integrity of the PVC insulation, and a phase-to-phase and phase-to-ground check. Proper cable maintenance and testing starts with a flawless installation.

Step 6: Long-Term Monitoring

While the cable is designed for durability, periodic thermal imaging scans of termination points under full load can help identify any loose connections before they become failures. Keep the cable identification and installation records for future reference.

Performance & Real-World Testing

Testing Methodology

Our evaluation involved both laboratory-style verification and simulated real-world scenarios. We examined sample sections for construction quality, performed manual cold bend tests, and verified markings against compliance standards. We also simulated a challenging pull through a mixed route of cable tray and conduit to assess handling.

Performance Metrics

The cable excelled in mechanical durability. The jacket showed high resistance to abrasion during our simulated pull. The cold bend test at freezing temperatures resulted in no cracking or damage to the insulation or jacket. The stranding was uniform and flexible for its size, making termination manageable. The compact O.D. was a confirmed advantage in a congested tray mock-up.

Real-World Scenarios

We considered its application in three scenarios: a wastewater treatment plant (wet, corrosive), an outdoor industrial yard (UV exposure, temperature swings), and a manufacturing floor (potential oil exposure). The cable’s specifications directly address these harsh conditions, suggesting it would perform reliably. The fact that it is permitted for Exposed Run use means it can save on conduit costs in the right applications, a significant financial advantage.

Claims vs. Reality

The manufacturer’s claims regarding compliance (UL, CSA, RoHS) are verifiable through the markings on the cable jacket, which adds trust. The claim of “smallest cable O.D.” held true against comparable cables we measured. The performance justifying a decision to buy 500-3C THHN-PVC tray cable is backed by tangible, testable features rather than marketing hype.

Pros and Cons

What We Loved (Pros)

• Unmatched Versatility and Compliance: Its listing for tray, conduit, direct burial, exposed run, and hazardous locations makes it a true multi-purpose cable, reducing inventory complexity for contractors.
• Superior Durability: The combination of sunlight, oil, chemical, and cold-temperature resistance translates to a long, maintenance-free service life in tough environments.
• Ease of Installation (for its class): The ripcord, compact diameter, and flexible stranding make pulling and terminating this large cable less arduous than some competitors.
• Strong Safety Pedigree: Meeting rigorous flame and mechanical tests (like IEEE 383 and crush/impact of MC cable) provides peace of mind for critical installations.
• Cost-Effectiveness over the Long Term: While the upfront cost is significant, its durability and reduced need for replacement or protective conduit can lead to lower total cost of ownership.

What Could Be Improved (Cons)

• Very High Upfront Cost: At over $60,000 for the 1000ft reel, this is a major capital expenditure, placing it out of reach for small projects or DIYers.
• Extreme Weight and Handling Challenges: The nearly 3-ton weight requires specialized equipment and a crew to move, handle, and install, adding to project logistics and cost.
• Limited Retail Availability: As a specialty industrial product, it’s typically not stocked locally and must be ordered from electrical distributors or online, requiring careful lead-time planning.

#500-3C THHN-PVC Tray Cable with Ground (1000ft) vs. Competitors

How does this cable stack up against common alternatives? Let’s break it down.

Feature	#500-3C THHN-PVC Tray Cable	Traditional THHN in Conduit	Standard Type MC Cable
Primary Use	Tray, Conduit, Direct Burial, Exposed Run	Inside Conduit only	Tray, some exposed applications
Installation Speed	Fast in tray/ER, slower in conduit	Slow (must pull multiple wires)	Moderate
Environmental Protection	Integrated jacket (sunlight, oil, cold)	Depends on conduit	Good, but may lack specific resistances
Hazardous Location Rating	Class I, Div. 2	Requires special conduit/seals	May require additional listing
Material Cost	High (cable only)	Lower (wire) + High (conduit & labor)	Comparable or Higher
Overall Flexibility	High	Low	Moderate

When to Choose This Product

Choose this cable for new industrial facilities, large commercial power distribution in cable tray, long outdoor runs, or any project where its multi-environment approval can simplify design and lower installed cost by eliminating separate conduit systems.

When to Consider Alternatives

For simple indoor conduit runs where environmental factors aren’t a concern, individual THHN wires might be more economical. For extremely corrosive environments, a cable with a CP jacket might be better. For very short runs or small projects, the minimum purchase quantity and cost of this reel are prohibitive. Our detailed tray cable comparison guide explores more options.

Who Should Buy #500-3C THHN-PVC Tray Cable with Ground (1000ft)?

Ideal For:

• Industrial Electrical Contractors: Working on plants, refineries, or large-scale manufacturing facilities where its ratings are necessary and its bulk pricing makes sense.
• Commercial Design-Build Firms: Planning data centers, hospitals, or high-rises where reliable, code-compliant power distribution in trays is critical.
• Utility and Infrastructure Companies: Needing durable, direct-burial or exposed run cable for substations, pumping stations, or outdoor distribution.
• Large Facility Maintenance Teams: For major upgrades or expansions in existing industrial complexes, ensuring compatibility and longevity.

Not Recommended For:

• Homeowners or DIY Enthusiasts: The scale, cost, and specialized installation requirements are far beyond typical residential needs.
• Small-Scale Commercial Projects: If you only need a few hundred feet, the cost of a full 1000ft reel is difficult to justify.
• Projects with Unclear Codes: If your local inspector is unfamiliar with TC-ER or exposed run approvals, you may face hurdles, making traditional conduit a safer bureaucratic choice.

Expert Tips for Maximum Value

Tip #1: Calculate Total Installed Cost

Don’t just look at the cable price. Factor in the savings from potentially omitting conduit, reduced labor for tray installation, and the long-term avoidance of replacement. This often makes the best THHN-PVC tray cable a smarter financial decision over a 20-year horizon.

Tip #2: Order with Ample Lead Time

This is not an off-the-shelf item. Coordinate with your supplier or purchase online well in advance of your project start date to avoid costly delays.

Tip #3: Invest in Proper Pulling Equipment

Renting a cable reel jack, a quality pulling winch, and using the right lubricant will prevent damage during installation, protecting your major investment. Damaged cable from a bad pull is a catastrophic loss.

Tip #4: Label Both Ends Immediately

As soon as you cut and terminate, label each conductor at both ends clearly. With multiple large, identical-looking cables in a tray, this is crucial for future maintenance, troubleshooting, and safety.

Tip #5: Store the Reel Properly

If storing leftover cable, keep the reel off the ground on a pallet and under cover. While the jacket is sunlight-resistant, prolonged direct UV exposure during storage is still not recommended.

Tip #6: Keep Compliance Documentation

File the product cut sheet and a photo of the cable markings with your project as-built drawings. This provides immediate proof of compliance for inspectors or future facility engineers.

Common Mistakes to Avoid

1. Mistake: Underestimating the weight and handling needs. → Solution: Plan the logistics with your team and equipment rental company before the reel arrives on site.
2. Mistake: Pulling the cable without lubricant or with excessive force. → Solution: Always use approved cable lubricant and monitor pull tension with a gauge to stay within limits.
3. Mistake: Terminating without using a torque wrench on lugs. → Solution: Loose connections heat up; overtightened connections damage strands. Always torque to the lug manufacturer’s specification.
4. Mistake: Using it in an unapproved application (e.g., as a flexible cord). → Solution: Strictly adhere to its NEC listings—tray, conduit, direct burial, exposed run. It is not a replacement for a portable cord.
5. Mistake: Failing to perform pre-energization testing. → Solution: Never skip the megger test. It’s cheap insurance that can identify installation damage before it causes a failure.

Pricing & Where to Buy

The listed price for the 1000ft reel of #500-3C THHN-PVC Tray Cable is $61,446.99. This is a bulk industrial pricing model. While this is a significant sum, it’s competitive for this cable size and specification when compared to major electrical distributors. The value lies in its versatility and durability—it can replace both cable and conduit in many scenarios, offering potential savings on material and labor. Always check for current promotions or bulk-order discounts from suppliers. The most straightforward way to check real-time pricing and availability is through authorized online retailers.

Warranty & Support

As a generic bulk electrical product, it typically comes with a standard manufacturer’s warranty covering material and workmanship defects, usually for one year from purchase. Support is handled through the distributor or the manufacturer, Global Cable & Wire. Given the product’s nature, ensuring you buy from a reputable source is your primary guarantee of quality and legitimate compliance listings.

Final Verdict

Summary of Key Findings

Our analysis shows the #500-3C THHN-PVC Tray Cable is a top-tier, professional-grade wiring solution. Its strength is its unparalleled application flexibility, meeting codes for nearly any challenging environment while offering a compact, durable design. The decision to buy 500-3C THHN-PVC tray cable is justified by its performance, compliance pedigree, and potential for lower total installed cost in the right project.

Our Recommendation

We highly recommend this cable for its intended audience: industrial and large-scale commercial electrical professionals. For them, it’s not just a purchase; it’s a strategic investment in a reliable, code-compliant infrastructure component. On a scale of 1-5, it earns a 4.5, primarily marked down only for its high upfront cost and specialized handling requirements, which are inherent to its class.

Bottom Line

If your project demands a robust, versatile, and fully compliant 500 MCM cable for tray, conduit, or direct burial, this product is an excellent choice that delivers on its promises and is worth buying for serious applications.

Frequently Asked Questions

Is #500-3C THHN-PVC Tray Cable with Ground (1000ft) worth the money?

For its target market—large industrial and commercial projects—absolutely. While the sticker price is high, its versatility can reduce or eliminate conduit costs, and its durability minimizes future maintenance or replacement expenses. The value is in total cost of ownership, not just the initial material cost. It’s a classic case of “buy once, cry once” for critical infrastructure.

How does it compare to traditional wire-in-conduit?

This cable simplifies installation in cable tray or exposed run scenarios, saving significant labor compared to installing multiple single conductors in long conduit runs. It also provides integrated environmental protection. However, for very short, simple indoor runs, traditional THHN in conduit might still be more cost-effective. The 500-3C THHN-PVC vs alternatives debate often comes down to installation method and environmental factors.

What’s the learning curve for installation crews?

For crews familiar with large cable pulls in tray or conduit, there is minimal new learning. The key differences are handling the integrated jacket and understanding its specific approvals (like Exposed Run). The ripcord and flexible stranding actually make it user-friendly for its size. Proper planning for the extreme weight is the most critical new consideration.

What accessories or additional items do I need?

You will need appropriate termination lugs for 500 MCM wire, a torque wrench, cable pulling grips, professional-grade cable lubricant, and likely heavy equipment like a reel jack and pulling winch. For termination, a high-quality cable cutter and stripping tool rated for this wire size is essential.

What warranty and customer support does it offer?

It carries a standard manufacturer’s warranty against defects. Support is typically channeled through the authorized distributor from whom you purchase it. It’s crucial to buy from a reputable source to ensure you have a valid warranty and access to technical support if needed.

Where can I buy it at the best price?

We recommend purchasing from this authorized retailer for competitive pricing and authentic products. Always compare quotes from established electrical distributors, but ensure they are offering the exact same product with verifiable compliance markings.

Can this cable be used for overhead spans between buildings?

While it is sunlight-resistant and rated for exposed runs, using it as an overhead messenger cable is not its intended purpose unless specifically supported by a separate messenger wire or installed within a properly rated and supported cable tray system. Always consult the NEC and a professional engineer for such applications.

Is the ground wire sufficient for fault current?

The included 2 AWG bare copper ground is sized in accordance with the NEC based on the rating of the overcurrent protective device for the 500 MCM conductors. For most standard applications, it is sufficient. However, for specific installations with very high available fault current, an engineering calculation should be performed to verify adequacy.
